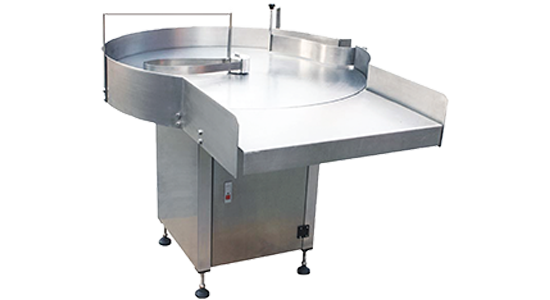

The Turn Table, also known as a Rotary Bottle Table, is a compact and efficient device used to streamline the movement of bottles at various stages of a packaging line. It is primarily used for either feeding empty bottles into the production line or collecting filled bottles after labeling, capping, or sealing operations.

Designed with versatility and durability in mind, the Turn Table is ideal for pharmaceutical, cosmetic, food, chemical, and beverage industries looking to improve line automation and reduce manual handling.

Key Features

Stainless Steel Construction – Fabricated from SS304 or SS316 as per GMP standards
Adjustable Speed – Variable frequency drive (VFD) for synchronized line speed
Bi-Directional Use – Can be used as a bottle feeder or bottle collection table
Noiseless Operation – Smooth and vibration-free performance
Flexible Design – Compatible with round, square, or irregular-shaped bottles
Height Adjustable Legs – Easy integration with various line heights
Low Maintenance – Simple mechanical design ensures long-term reliability

Working Principle

The Turn Table operates through a rotating stainless-steel disc, which gently moves bottles in a circular motion. When used as a feeding table, the operator manually loads bottles onto the rotating disc. The bottles are then directed onto the conveyor in an upright and orderly fashion.

When used as a collection table, finished bottles from the production line are received on the rotating surface and collected for packing, inspection, or manual handling. Guide rails help ensure that bottles move in a controlled manner and do not fall or jam.

Applications

Feeding empty bottles to filling or labeling machines
Accumulating filled or capped bottles before packaging
Temporary buffer for high-speed production lines
Ideal for bottles, jars, containers of varying sizes

Technical Specifications (Standard – Customization Available)

Parameter	Specification
Table Diameter	600 mm / 900 mm / 1200 mm
Speed Control	Variable via VFD
Electrical Supply	220V / 415V, 50Hz, 1 or 3 Phase
Construction	SS304 (SS316 optional)
Height Adjustment	±50 mm
Suitable Bottle Diameter	30 mm – 100 mm (Customizable)
Output	Up to 100 bottles per minute

Advantages :

Optimizes workflow and reduces manual handling
Seamless integration with filling, labeling, and packing lines
Ensures a smooth, jam-free transfer of bottles
Increases operational efficiency at entry and exit points

Custom sizes, bottle guides, and configurations are available to meet specific production line requirements. Contact us today for a tailored solution!

SALIENT FEATURES :

SS-304 Body Construction.
The turn table adopts the frequency changer to have speed control, gear driven rotating work table so that bottles or cans in the rotation under the action of tangential force sequential automatic entry conveyor inlet easy to combine with all kinds of conveyor production line.
The turn table has the advantages of elimination of labour; improve the effectiveness, frequency control for rotary movement, making bottles to access sequentially on conveyor.
The structure is simple, convenient to operate, no replacement parts, suitable for different bottle shape and height is the ideal supplementary production line equipment.

EQUIPMENTS OFFERED :

Plate Size: 24”/36”/42”/48”
Machine Direction: Clockwise / Anti-Clockwise (as per customer reuirement)

Machine Output: Depends upon production Speed.
Power Supply: Single Phase + Neutral + Earthing
