The Automatic Flow Wrapping Machine is a versatile and high-speed packaging system designed to wrap individual products in a continuous flow of film. Widely used in food, pharmaceutical, cosmetic, stationery, and hardware industries, this machine delivers airtight, ttractive, and tamper-evident packaging for products like biscuits, chocolates, soaps, syringes, surgical items, and more.

With servo-controlled technology and PLC-based automation, the machine ensures smooth operation, precise sealing, and minimal product waste. Its horizontal wrapping style and adjustable forming box allow for a wide range of product sizes and shapes to be packed efficiently. It supports various packaging materials such as BOPP, laminated film, polyethylene, and heat-sealable films.

Applications

Biscuits, cookies, chocolate bars
Soaps, surgical syringes, face masks
Napkins, hardware items, pens
Granola bars, wafers, and medical devices

PRODUCT SPECIFICATION :

Suitable Film Material: OPP/CPP, PT/PE, KOP/CPP, ALU-FOIL
Machine Output: 30 to 100 PPM
Sealing Type: Centre seal

Film Roll Size: Open 120 to 265 mm
Power Supply: Three phase + neutral + earthing

Key Features

High-Speed Performance: Capable of 60–300 packs/min depending on product & film.
Versatile Packaging: Ideal for both food and non-food items – solids, bars, and irregular shapes.
Servo Drive System: Ensures precise film feeding, product positioning, and smooth sealing.
User-Friendly HMI: Touchscreen interface with product memory, error alerts, and speed control.
Adjustable Forming Box: Allows easy changeover between products of different sizes.
Photo Mark Sensor: Detects printed film registration marks for accurate cutting and sealing.
SS304 Construction: Hygienic and GMP-compliant stainless-steel build for long life and easy cleaning.

SALIENT FEATURES

SS 304 body structure and MS base plate with SS cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.
Elegantly designed and constructed to meet the customer’s requirements.
Servo-driven wrapping system.
Sealing temperatures of middle and transverse are controlled independently, suitable for several kinds of packaging materials.
Infeed pusher chain conveyor provided for proper infeed arrangement of products.
PLC with HMI touch screen for all operational controls.

Working Principle

Product Feeding: Products are aligned on an infeed conveyor.
Film Unwinding: Wrapping film is pulled over the forming box to envelop the product.
Longitudinal Sealing: The film edges are sealed beneath the product with heated rollers.
Cross Sealing & Cutting: The product is sealed and cut at both ends.
Discharge: The finished packs move to collection or carton-packing area.

Technical Specifications (Customizable)

Parameter	Specification
Output Speed	60–300 packs/min
Product Size Range	Length: 60–300 mm, Width: 20–120 mm
Film Width	Up to 450 mm
Power Supply	230V / 415V AC, 50Hz
Drive Mechanism	Servo motors or stepper motors
Film Type	BOPP, LDPE, Laminated film, Heat sealable
Construction	SS304 / SS316 (customizable)
Control System	PLC with Touchscreen HMI

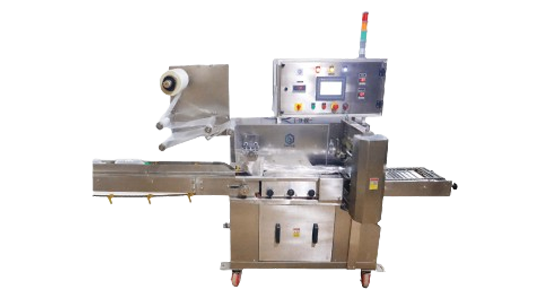

Automatic Flow Wrapping Machine
