The Automatic Single Side Labelling Machine is an efficient and versatile solution designed to apply self-adhesive labels on one side of flat, oval, square, or round bottles and containers. Engineered for high precision and consistent performance, this machine is ideal for industries such as pharmaceutical, food & beverage, cosmetics, personal care, agrochemical, and lubricant oil.

Equipped with a PLC-based control system, advanced sensor detection, and user-friendly interface, it delivers accurate label placement at high speeds, significantly increasing packaging line efficiency and product presentation.

Advantages

Compact design suitable for inline or standalone use
Highly adaptable to various bottle shapes and sizes
Reduces labeling errors and material waste
Easy to operate, maintain, and clean
Integrates well with filling, capping, or shrink sleeve machines

PRODUCT SPECIFICATION :

Suitable Labels: Adhesive sticker labels
Suitable Containers for Labelling: Flat & square-shaped bottles & jars (Plastic/Glass)
Machine Output: 50 to 120 BPM

Label Roll Diameter: Maximum 300 mm
Label Height: 65 to 200 mm
Power Supply: Single phase + neutral + earthing

Key Features

Single-Side Label Application: Precisely applies labels on one flat, oval, or slightly round surface of the container.
Wide Range Compatibility: Suitable for plastic, glass, PET, HDPE, or metal bottles and jars of varying shapes and sizes.
High Speed Operation: Capable of labeling up to 60–150 bottles per minute, depending on container and label dimensions.
Stepper/Servo-Driven Label Dispenser: Ensures smooth label feeding and wrinkle-free application with ±1 mm placement accuracy.
"No Bottle – No Label" System: Prevents label wastage by detecting container presence automatically.
Tool-less Changeover: Quick adjustment for different bottle sizes and label lengths without the need for tools.
Robust Construction: Fabricated in SS304/SS316L stainless steel, ideal for hygienic and GMP-compliant production lines.

SALIENT FEATURES

SS 304 body structure and MS base plate with SS cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.
Elegantly designed and constructed to meet the customer’s requirements.
Especially used for labelling all kinds of round-shaped bottles, jars, etc.
Servo-driven label dispensing system.
SS-304 slat conveyor with VFD for speed control.
SS frame structure with acrylic doors. (Optional)
PLC with HMI touch screen for all operational controls.
Batch code printer installed to print the date and information on the label. (Optional)
Feedworm provided to create uniform space & motion between containers.

Working Principle

Feeding: Bottles are transported via an infeed conveyor.
Positioning: Containers are guided and stabilized for accurate label alignment.
Label Dispensing: A sensor detects the container and triggers the label applicator.
Label Application: The label is applied with pressure rollers or brushes to ensure smooth adhesion.
Discharge: Labeled bottles are automatically conveyed to the next process.

Applications

Cosmetics: Lotion, cream, and oil bottles
Pharmaceuticals: Tonic, syrup, and supplement containers
Food & Beverage: Juice, sauce, pickle jars
Agrochemicals: Pesticide, fertilizer bottles
Personal & Home Care: Handwash, floor cleaner, and detergent bottles

Technical Specifications (Customizable as per requirement)

Parameter	Specification
Output Speed	Up to 60–150 bottles per minute
Label Height	Up to 120/150 mm (customizable)
Label Length	10 mm to 300 mm
Bottle Height	50 mm to 300 mm
Accuracy	±1 mm
Label Roll Core	75 mm
Label Roll Outer Diameter	Up to 300 mm
Control System	PLC with HMI touchscreen
Sensors	Fiber optic / Photoelectric for label & bottle detection
Power Requirement	230V AC, 50Hz, Single Phase

Customization Available

The machine can be tailored to support transparent or wraparound labels, integrate with print & apply modules, and match your specific production requirements.

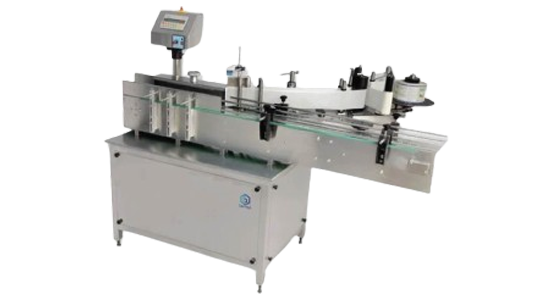

Automatic Single Side Labelling Machine
