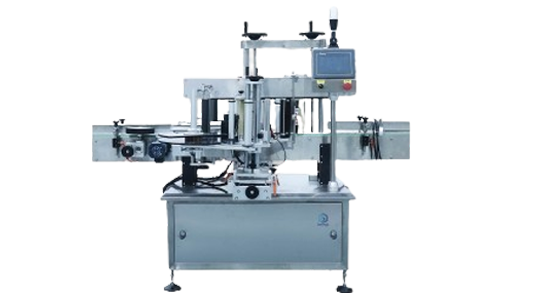

The Automatic Double Side Labelling Machine is a high-speed, precision-engineered solution designed to apply self-adhesive labels on both front and back sides of flat, oval, square, or rectangular bottles and containers in a single pass. This machine is widely used in pharmaceutical, cosmetics, personal care, food & beverage, pesticide, and FMCG industries, ensuring professional and consistent label placement for enhanced product presentation and brand visibility.

With its PLC-based control system, advanced sensing mechanisms, and tool-less changeover, this equipment delivers exceptional accuracy, speed, and efficiency—making it ideal for modern packaging lines.

Applications

Cosmetics: Shampoo, lotion, and cream bottles
Pharmaceuticals: Syrup, sanitizer, and nutraceutical containers
Food & Beverages: Sauce, oil, and juice bottles
Pesticides & Chemicals: Flat HDPE bottles and cans
Personal Care: Handwash, facewash, and liquid detergent bottles

PRODUCT SPECIFICATION :

Suitable Labels: Adhesive sticker labels
Suitable Containers for Labelling: Round, flat & square-shaped bottles & jars (Plastic/Glass)
Machine Output: 50 to 120 BPM

Label Roll Diameter: Maximum 300 mm
Label Height: 65 to 200 mm
Power Supply: Single phase + neutral + earthing

Key Features

Dual Side Label Application – Simultaneously applies front and back labels in perfect alignment on containers of various shapes.
Wide Bottle Compatibility – Supports flat, oval, round (with modification), square, and other non-round container profiles.
High-Speed Performance – Handles labeling speeds up to 60–200 containers per minute, depending on bottle and label size.
Intelligent Label Dispensing System – Stepper or servo-driven label applicators ensure accurate and wrinkle-free label placement.
User-Friendly Touchscreen Interface – Integrated with PLC + HMI for easy operation, recipe saving, and fault diagnostics.
No Bottle – No Label System – Prevents wastage of labels and ensures the machine only operates when containers are present.
Tool-less Adjustment – Fast and easy changeover between different container sizes and label formats without the need for tools.
GMP-Compliant Construction – Built entirely in SS304/SS316L stainless steel, ideal for cleanroom and hygienic environments.

SALIENT FEATURES

SS 304 body structure and MS base plate with SS cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.
Spot wrap-around assembly will be provided in case of labelling round-shaped bottles. (Optional)
Elegantly designed and constructed to meet the customer’s requirements.
Servo-driven label dispensing system.
Top conveyor will be provided for precise labelling.
PLC with HMI touch screen for all operational controls.
SS-304 slat bottom conveyor with VFD for speed control.
Feedworm provided to create uniform space motion between containers.

Working Principle

Container Feeding: Bottles are fed through a conveyor system in an upright orientation.
Container Alignment: Side gripping belts or guides ensure precise positioning for accurate label application.
Label Application: Two label dispensing heads (for front and back) apply labels simultaneously as the container passes through.
Pressing Station: Rollers or brushes press the labels onto the surface to ensure bubble-free adhesion.
Outfeed: Labeled containers are transferred to the next station, such as capping or packing.

Technical Specifications (Customizable as per requirement)

Parameter	Specification
Label Height	Up to 120/150 mm (higher on request)
Label Length	10 mm to 300 mm
Bottle Dimensions	Width: 25–120 mm, Height: 50–300 mm
Label Roll Core Diameter	75 mm
Label Roll Outer Diameter	Up to 300 mm
Accuracy	±1 mm
Speed	Up to 60–200 BPM
Drive System	Stepper / Servo motor-based
Sensors	Fiber optic / Photoelectric sensors
Control System	PLC with Touchscreen HMI
Power Supply	230V AC, 1-Phase, 50Hz (Customized options available)

Advantages

High-speed, dual-side labeling in a single pass
Saves time, labor, and space on the packaging line
Reduces label wastage with smart sensing technology
Compact, modular, and easy to maintain
Customizable to suit your specific container and label requirements

Customization Available

We can design the machine to accommodate unique container shapes, specialized labels (transparent, wraparound, etc.), and integration with vision inspection, rejection systems, and print/apply options.
