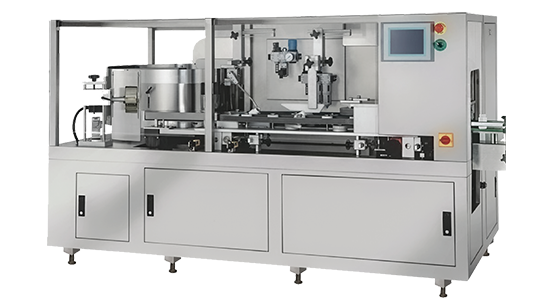

Our Bottle Unscrambler is a high-speed automatic system designed to efficiently sort and orient empty plastic bottles before feeding them into filling and packaging lines. Built to handle a wide variety of bottle shapes and sizes, this machine plays a critical role in streamlining production lines in industries such as pharmaceuticals, food & beverages,cosmetics, chemicals, and nutraceuticals.

Key Features

High-Speed Operation – Capable of unscrambling up to 200 bottles per minute (model-dependent)
Tool-less Changeover – Quick and easy adjustment for different bottle sizes and shapes
Gentle Handling – Ensures no scratches or deformation during bottle orientation
Compact Footprint – Space-saving design ideal for integrated production lines
cGMP & CE Compliant Design – Hygienic stainless steel construction (SS304/SS316 as required)
PLC-Based Controls – User-friendly HMI interface with speed adjustment and diagnostics
Dust-Free Operation – Enclosed design with optional ionized air cleaning system
No Bottle–No Feed System – Prevents wastage and improves operational efficiency

Working Principle

The Bottle Unscrambler works on a centrifugal or air-lift mechanism (based on model) that collects randomly oriented bottles from a bulk hopper. These bottles are gently guided into a rotating disc or orientation chamber, where they are aligned upright using mechanical guides, air jets, or a combination of both.

Once properly oriented, the bottles are smoothly transferred onto the downstream conveyor system towards the filling machine. Sensors ensure that misaligned or fallen bottles are rejected or re-routed for correction.

Applications

Oral Liquid & Syrup Bottles
Cosmetic Containers
Nutraceutical and Health Drink Bottles

Agrochemical and Chemical Bottles
Any round/square plastic bottles used in automated packaging

Technical Specifications (Typical Model - Customizable)

Parameter	Specification
Bottle Diameter Range	30 mm to 100 mm
Bottle Height Range	50 mm to 200 mm
Output Speed	Up to 60–200 bottles/min (model-based)
Electrical Supply	220V / 415V, 3 Phase, 50 Hz
Construction Material	SS304 (contact parts SS316 optional)
Air Supply	4 to 6 Bar (for air-jet models)
Control System	PLC with Touch Screen (Optional)

Benefits :

Increases automation and line efficiency
Reduces labor dependency and manual errors
Prevents bottle jamming and ensures continuous flow
Ideal for high-volume packaging operations

Customization Available:

We offer tailor-made unscramblers based on your bottle design, production speed, and layout preferences.

SALIENT FEATURES :

SS 304 Body Structure and MS base Plate with SS cladding or hard chrome plating of all exposed parts to ensure long life and resistance against corrosion.
ElegantLy designed and constructed to meet the customer’s requirements.
Especially used to arrange the disordered empty plastic bottles or containers in uniform order.
SS Frame structure with Acrylic Doors.
The Bottle Orientation unit is provided which is accurate, adjustable & user friendly.
Automatic Stop system provided which prolongs the lifetime of the machine.
PLC with HMI Touch Screen for all Operational Controls.
SS-304 Slat Bottom Conveyor with VFD for Speed Control.

EQUIPMENTS OFFERED :

Machine Model: RK-LBU-100
Suitable Labels : Adhesive Sticker Labels
Suitable Containers: All kinds of round, square or customized shaped Plastic Bottles & Jars, etc.

Machine Output: 50 to 150 BPM
Container Diameter: 50 to 80 mm
Container Height: 80 to 200 mm
Power Supply: Three Phase + Neutral + Earthing
